About This

• AHD 1080P High Definition Backup Camera---2083 sensor chip, video switch button,1920*1080 Pixels, 0.01 flux to support high quality night vision image, 170 degrees viewing angle, no worry about blind spot area, IP68 waterproof, works properly under car washing or bad weather, fantastic night vision effect, can be used on Truck, SUV, Minivan, Camper, RV, Pickup and so on.

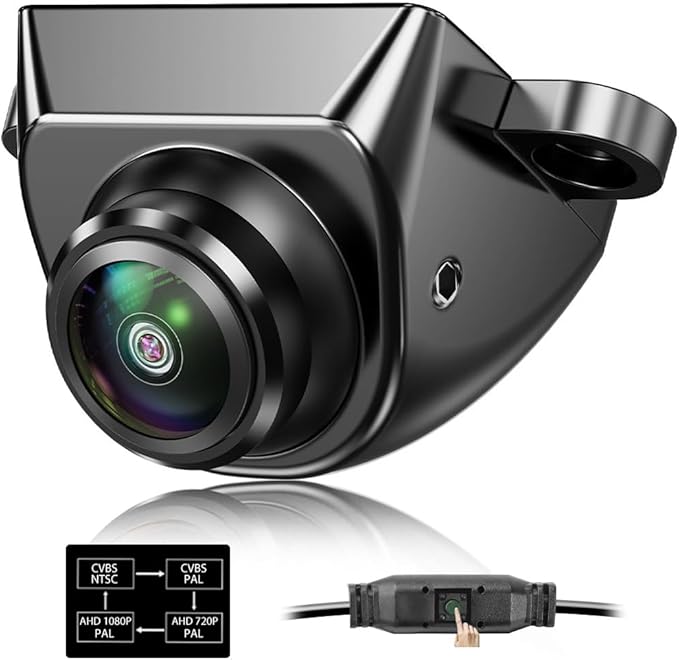

• SUPPORT BOTH AHD AND CVBS VIDEO SIGNAL---With the video switch button, this vehicle front rear side view camera can work with both ALL AHD monitors and CVBS monitors. Its output video signal is CVBS by default, if you need it to connect with a AHD monitor, please press the button for 5 seconds to switch to the video format needed. AHD video signal image is much clearer than CVBS.

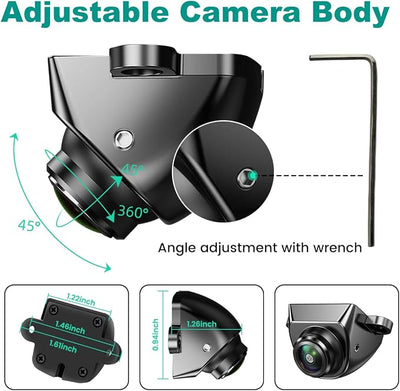

• Built-in Rotating Metal Camera Body---Unlike old-fashioned car cameras which can only adjust the viewing angle by adding gaskets, you can rotate GreenYi pickup rear camera’s lens part to find a best viewing angle with the help of the mini wrench, never need to worry about too high or too low image shown on the monitor. Mini design, solid shinning metal housing, shockproof, longer service life.

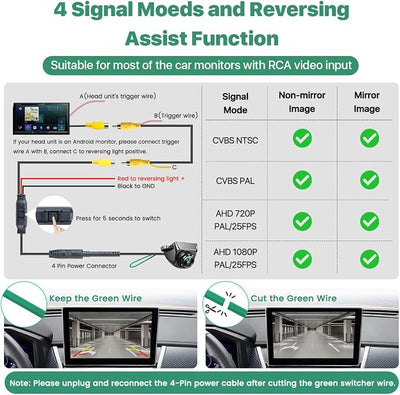

• CAN BE USED AS BOTH REAR AND FRONT SIDE VIEW CAMERA---You can install the rv blind spot camera at any position wanted with vertical(upside down) or horizontal mounting as the camera body is 360-degree-rotatable. This camera shows mirror image and guide wire used as a reverse camera by default, if you want to use it as a front or side camera, please cut the green, then the guideline will turn off.
• IP68 Rated Waterproof Reverse Camera---When manufacturing the reversing camera, we have tried our best to upgrade the waterproof grade. We have fulfilled the whole camera body with waterproof silicon rubber, we tested every single camera under water for 24 hours, it will work properly under extreme conditions.
• Backing Camera Work With Monitors Supports RCA Connection---This backing up camera only works with monitors which supports RCA connection. For normal mirror monitors or TFT monitors, no need to use the trigger detection cable. When it works with a radio head unit, please remember to connect the trigger wire.

Overview

• Brand : GreenYi
• Product Dimensions : 1.26"L x 1.22"W x 0.94"H
• Compatible Devices : Monitors with RCA Connector
• Installation Type : Surface Mount, Horizontal or Vertical face
• Optical Sensor Technology : CMOS
• Lens Type : Fisheye
• Real Angle of View : 170 Degrees
• Connector Type : 4-Pin Mini DIN, RCA
• Optical Sensor Size : 1/3 inch
• Field Of View : 170 Degrees
