• TECHNICAL INFORMATION (1) || Number of entry channels : 2 Stereo || Number of exit channels : 3 Stereo || "General hook adjustment : Main: -13 to +8 dB Aux: -13 to +8 dB || " Output impedance : 100 Ohms || Maximum output level : 28.28Vpp (10 VRMS) || Frequency response (-1dB) : 6Hz to 55KHz ||
• TECHNICAL INFORMATION (2) || Total harmonic distortion : 0.0001 || Signal / Noise Relationship : >100 dB || Crosstalk (separation between channels) : >80dB / 1KHz || Graphic equalizer, 7 bands : Frequencies: 50, 125, 315, 750, 2.2K, 6K, 12KHz || voltage : 9 ~ 15 VDC || Nominal consumption (12.6V) : (14.4): 0.270 A || Dimensions (LxWxD) : 185x31x138mm (7.28"x1.22"x5.43") || Weight : 0.68Kg (1.50lb) || EAN : 7908706601152 ||

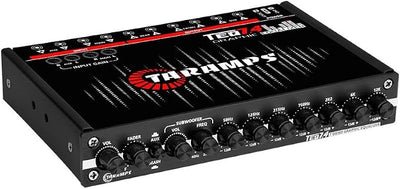

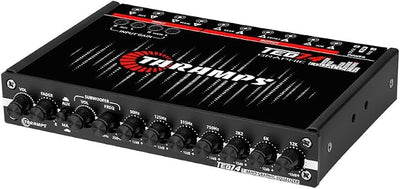

• The Taramps TEQ 7.4 Stereo Graphic Equalizer Preamp is a 7-band graphic equalizer. It covers frequencies of 50Hz, 125Hz, 315Hz, 750Hz, 2.2kHz, 6kHz, and 12kHz. The settings are variable from -12dB to +12dB. Its function is to correct excess or lack of sound. It attenuates and reinforces the sonic characteristics of your car audio. It also allows you to adjust the sound according to your personal preferences. ||

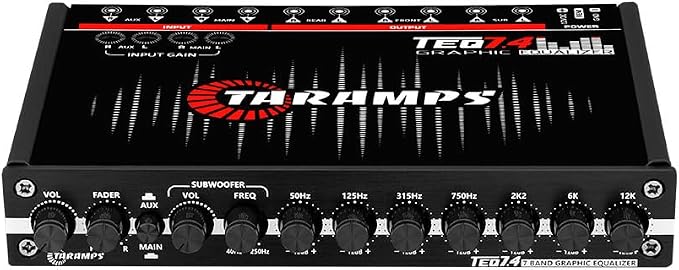

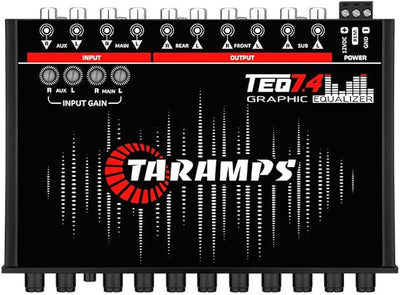

• You have more control over the settings! Features include input channel tuning and adjustable master volume level. It also features adjustable subwoofer volume and LPF from 40Hz to 250Hz. It has two main RCA inputs, two auxiliary RCA inputs, and six-channel RCA outputs (Front/Rear/Subwoofer). So you can control how your music sounds. Clearer, better, and more perfect! It is available with blue lighting, which adds style to your car. ||
• Easy to install and producing incredible results, this device is perfect for improving your car's audio performance.

Overview

• Item dimensions L x W x H : 7.28 x 5.43 x 1.22 inches
• Manufacturer : Taramps
• Maximum Supply Voltage : 15 Volts (DC)
• Minimum Supply Voltage : 9 Volts (DC)
• Mounting Type : Freestanding
