About This

• Upgrade and Thicken: A pair of 12v power distribution block, includes a red and a black power distribution block(Positive and Negative). It also comes with 4mm thicker copper bus bar plate which can be connected to wider range of cables

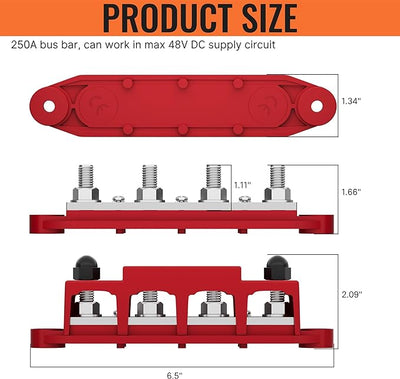

• 250A Rating: The marine battery bus bar rated 250A when work in 12v circuit, and the battery terminal block can handle MAX 48V

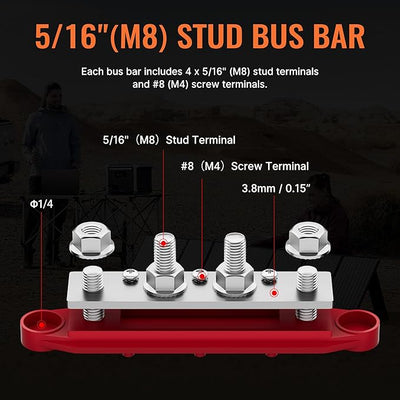

• 5/16" Stud Terminal: The battery bus bar terminal block includes 4 x 5/16"(M8) studs and 3 x #8 screw terminals, which makes the 12V junction block able to accept large size terminal connectors and wires. The nylon bottom is also secured by M8 post which makes it more fixed and won't strip

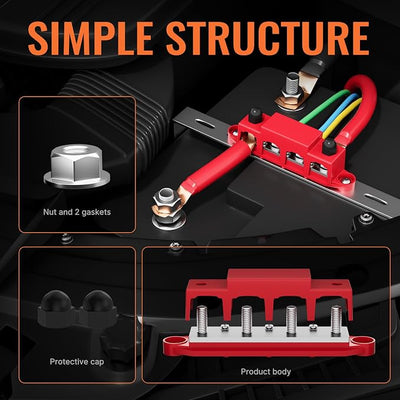

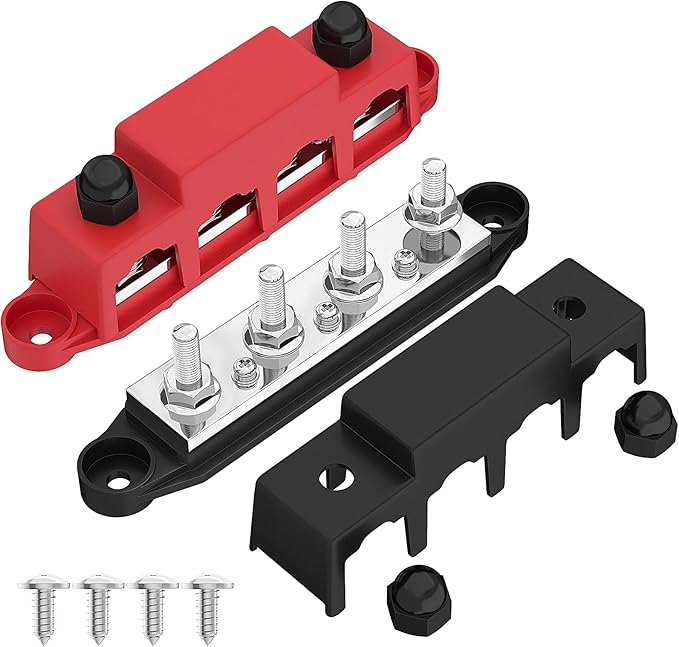

• Protect Cover and Nuts: Each power busbar will come with a protect cover and two nuts, which helps to shelter as much exposed area as possible to reduce the risks of accidental contact and prevent short circuit, makes the circuit safer
• Wide Application: The 12 volt battery bus bar with cover aims to make the wiring of circuit become neat and tidy, preventing mess harness from causing electric short circuit, suitable for automotive, car, truck, marine, boat, solar wiring

Overview

• Current Rating : 250 Amps
• Item Pitch : 8 Millimeters
• Connector Type : Screw
• Number Of Contacts : 7
• Mounting Type : Surface Mount
• Material : Copper, PVC, Stainless Steel
• Color : Red&Black
• Brand : Joinfworld
• Voltage : 12 Volts
• Number Of Poles : 4
